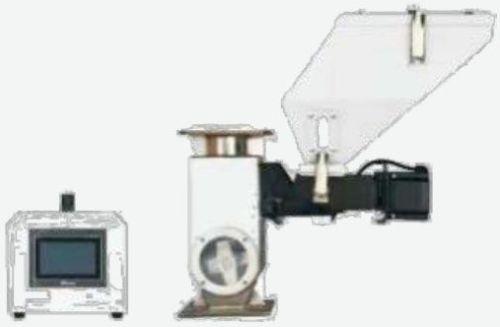

Single Color Masterbatch Mixer Volumetric Doser Machine

The metering masterbatch mixer i6 suitablé far automatic prapartianal mixing of new materials, secondary materials, masterbatch or addithves, etc. The metering masterbatch machine model uses a DC brushless motor, which mixes according to a pre-sel propartion and automatically converts to 4 speed set by the microcomputer control system to directly drive the precision screw extrusion of raw materials, with an error value nat exceeding = 1%.

Standard configuration:

• Capable of memory and storage of data:
• Using a DC brushless motor;
• Adopting microcomputer based control calculatlan;
• The requirement for simultaneous external signal input;
• The machine screws are treated with chrome plating:
• Using ameasuring scale to control the mixing process:
• Gan achieve quantitative feeding, accurately measure and transport raw materials;
• Humanized design, simple operation, and stable machine performance;
• Stable operation to ensure the continuity of injection molding machine production:
• Modular assembly structure, easy to disassamita, clean and exchange;
• Using PL€ color touch screen controller for calculation, accurate measurement and output range:
• Flange size: can be customized according to your company's size;
• Standard flange size: 120mm * 120mm
• Movement distance inside the flange slot: 20rmm-120mm
